Introduce

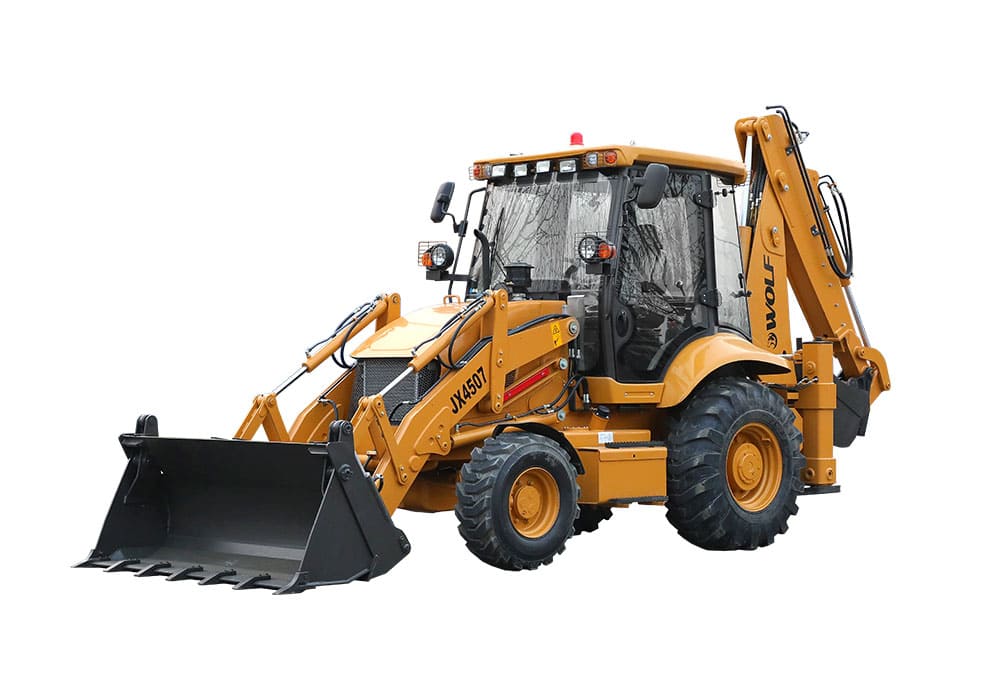

JX4507 backhoe loader is an upgraded model based on JX4507, The upgraded luxury cabin with ROPS and FOPS certification ensures maximum safety and comfort for the operator, and the strengthened digging arm gives the machine a more robust and heavy-duty appearance, resulting in more efficient digging performance. With a 2.5-ton loading capacity, JX4507 is powered by a 75KW Yuchai engine or an optional 100HP Cummins engine. H-leg with hydraulic side shift function is preferred by many customers. You can easily switch between 4-wheel drive and 2-wheel drive based on different working requirements.
Specifications
Transport Dimension | |
---|---|
L*W*H (mm): | 5920×2250×3770 |
Overall Operating Weight: | 8200KG |
Wheel base(mm): | 2264 |
Min. Ground Clearance: | 300mm |
Bucket Capacity: | 1.0m3 |
Breakout Force: | 54KN |
Loading Lifting Capacity: | 2500KG |
Bucket Dumping Height: | 2740mm |
Bucket Dumping Distance: | 1015mm |
Digging Depth: | 52mm |
Backhoe Capacity: | 0.3m3 |
Max. Digging Depth: | 4280mm |
Swing Angle of Excavator Grab: | 190o |
Max. Pulling Force: | 56KN |
Engine | |
Model: | YC4A105Z-T20 |
Cylinder-Inside Diameter*Stroke: | 4-102×120 |
Rated Power: | 75KW |
Rated Speed: | 2200r/min |
Min. Fuel Consumption: | ≤242g/km.h |
Max.Torque: | ≥410N.M |
Displacement: | 4.4L |
Tyre | |
Model: | 14-17.5/19.5L-24 |
Pressure of Front wheel: | 0.55 Mpa |
Pressure of Back Wheel: | 0.223 Mpa |
