Introduce

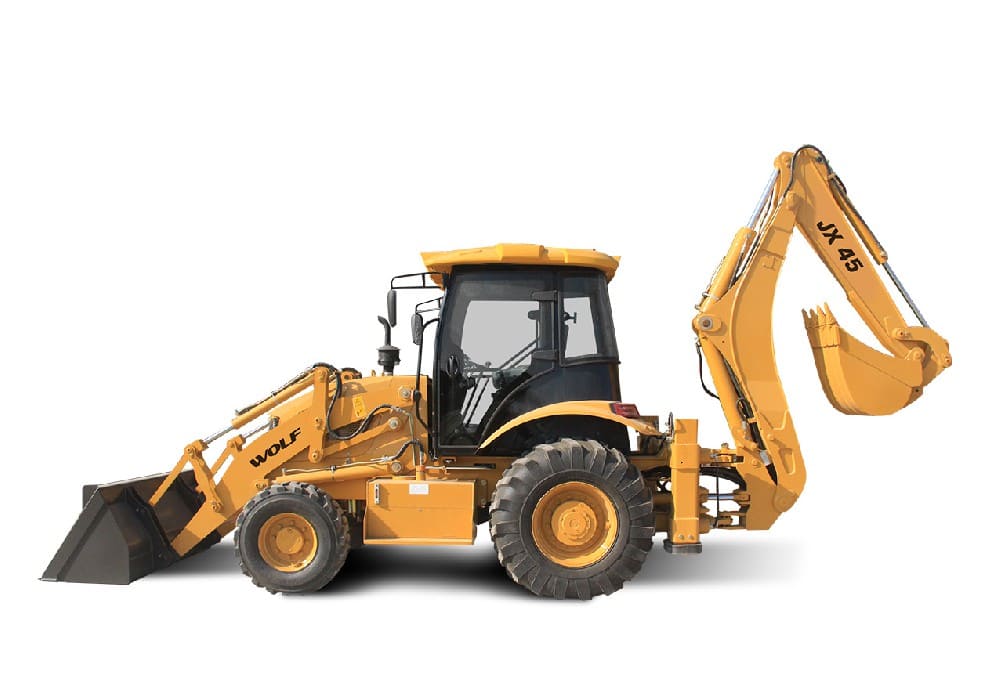

WOLF JX45 backhoe loader is a versatile machine suited to a wide range of applications within constrained work sites. It’s powered by a Chinese Yuchai 75kw diesel engine, an optional CUMMINS engine. With a 2.5-ton loading capacity in the front, a 0.03 cbm digging bucket in the back, JX45 combines loading and excavating capabilities excellently into one single machine that is easy to maintain. The hydraulic control system is easy and comfortable to operate. A-leg with better stability or H-leg with hydraulic side shift function can be chosen per customers’ requirements.
Specifications
| Transport Dimension | |
|---|---|
| L*W*H (mm): | 6100×2217×3764 |
| Overall Operating Weight: | 8125KG |
| Wheel base: | 2200mm |
| Min. Ground Clearance: | 300mm |
| Bucket Capacity: | 1.0m3 |
| Breakout Force: | 38KN |
| Loading Lifting Capacity: | 2500KG |
| Bucket Dumping Height: | 2742mm |
| Bucket Dumping Distance: | 1062mm |
| Digging Depth: | 52mm |
| Backhoe Capacity: | 0.3m3 |
| Max. Digging Depth: | 4082mm |
| Swing Angle of Excavator Grab: | 190o |
| Max. Pulling Force: | 39KN |
| Engine | |
| Model: | YT4B2-G60Q |
| Cylinder-Inside Diameter*Stroke: | 4-110×120 |
| Rated Power: | 55KW |
| Rated Speed: | 2400r/min |
| Min. Fuel Consumption: | ≤216g/km.h |
| Max.Torque: | ≥261.7N.M/1800r/min |
| Displacement: | 4.4L |
| Tyre | |
| Model: | 14-17.5/19.5L-24 |
| Pressure of Front wheel: | 0.22 Mpa |
| Pressure of Back Wheel: | 0.22 Mpa |
