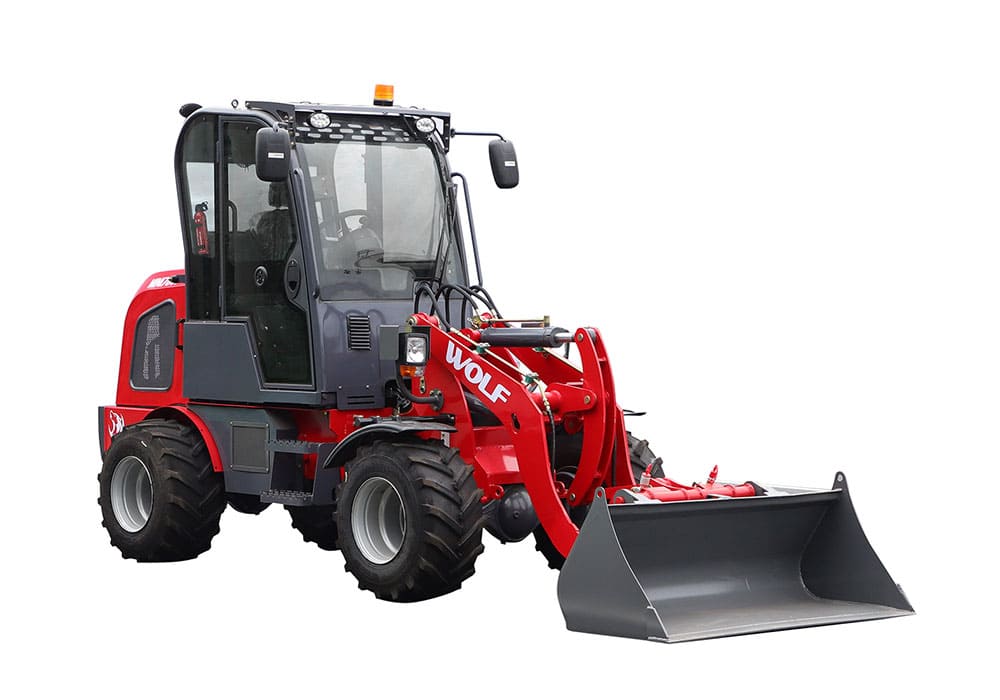

The Mini 780T wheel loader is compact, yet powerful, with a small turning radius that allows it to maneuver easily in tight spaces. Open cabin and enclosed meet different demands. The standard engine is the Changchai ZN390Q engine, and the optional Xinchai 490 Euro 3 engine or Changchai 390 Euro 5 engine is based on various engine emissions standards in other markets.
We have different tires for you to choose from based on your working conditions. Standard narrow tires, a little wider 29×12,5-15 tires, and the most commonly used 31×15.5-15 tires. You can always customize your loader.
It was widely welcomed by European customers when published.
Standard Configuration:
– Changchai 3 Cylinders engine 25KW
– Standard Joystick
– Standard 825-16 tires
– Safety Canopy
– 3 ways hydraulic pipelines
– Rear Trailer ball
– Standard bucket
| Type | Data |
|---|---|
| Engine Model: | Changchai ZN390Q |
| Rated Power(kw): | 25 |
| Rated Speed(rpm): | 2600 |
| Rated load(kg): | 1000 |
| Rated Bucket Capacity(m3): | 0.4 |
| Overall Size LxWxH(mm): | 4545×1520×2483 |
| Wheel base (mm): | 2145 |
| Wheel thread(mm): | 1175 |
| Max.breakout force (KN): | 32 |
| Max.dump height(mm): | 2023 |
| Dump distance(mm): | 831 |
| Total time(s): | 9.2 |
| Operating Weight(kg): | 2800 |
| Tyre: | 825-16/10-16.5/28×9.5-15/31×15.5-15 |
