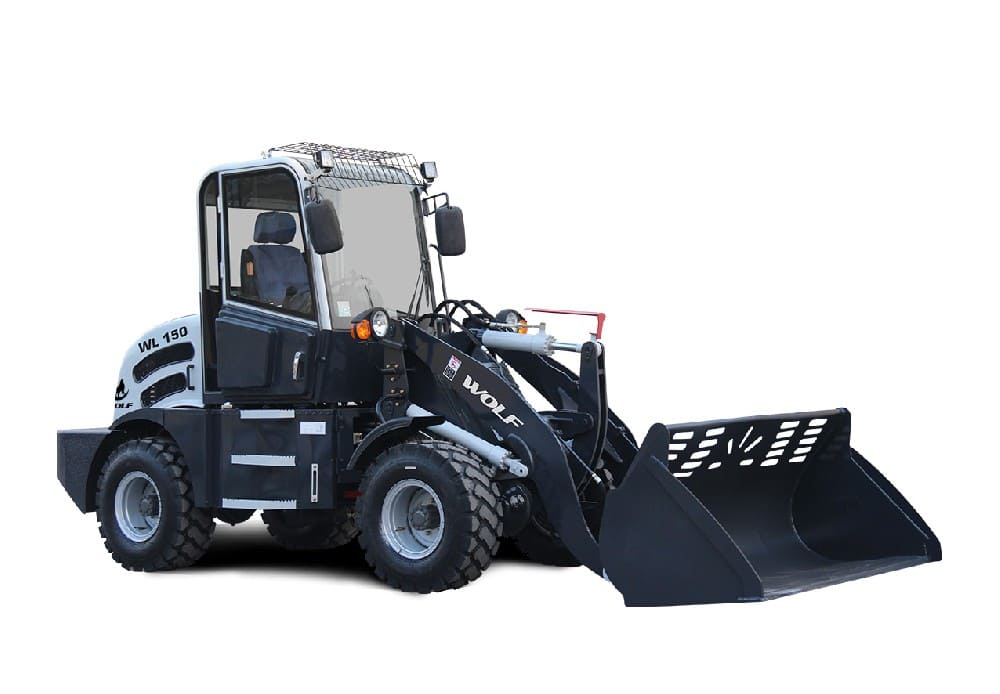

Introduce
Performance and characteristic
* The international CE certification provides assurance in the performance and safety of wheel loaders.
* Joystick makes for supreme user comfort and easy control of the wheel loaders.
* Hydraulic quick change device, attached various optional tools to solve different tough work.
* Strengthened and reliable transmission, and drive axle.
* Optimized and choose the best quality Hydraulic component which increases productivity, and sealing reliability.
* Articulated frame with box structure.
* Optional attachment: wooden fork, pipe/pallet fork, grass fork, rock bucket, bigger bucket, long arm, etc.
Standard configuration:
Xinchai C490BPG E3 36.8kw, 4WD, 20.5-16 agricultural tires, joystick, standard bucket, , Varta Battery, floating function, luxury cabin with heater, 220V engine preheat, warning light, adjustable steering wheel and seat, the bucket can be level automatic, back sound, radio, fan, hand brake, extinguisher, window hammer, Free parts, toolbox.Standard with 3 hydraulic lines
Optional:
Imported engine with Euro V or EPA Tier 4 standards, Quick Hitch, double heater, air conditioning, electric floating, extra Hydraulic Line, electronic joystick, different attachments, etc.
Specifications
| Type | Data |
|---|---|
| Engine Model: | XINCHAI C490BPG E3 |
| Rated Power(kw): | 36.8 |
| Rated Speed(rpm): | 2650 |
| Rated load(kg): | 1500 |
| Rated Bucket Capacity(m3): | 0.5-0.9 |
| Overall Size LxWxH(mm): | 5100×1700×2580 |
| Wheel base (mm): | 2272 |
| Wheel thread(mm): | 1391 |
| Max.breakout force (KN): | 48 |
| Max.dump height(mm): | 2452 |
| Dump distance(mm): | 1146 |
| Total time(s): | 11 |
| Operating Weight(kg): | 3600 |
| Tyre: | 1200-16/12-16.5/20.5/70-16/23.5-16 |
