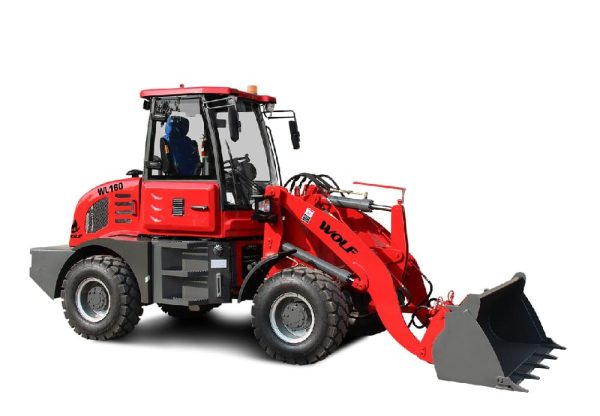

Introduce
Performance and characteristic
1. The use of a straight direct-injection water-cooling four-stroke engine produced by Ricardo’s technology ensures good starting performance in cold condition, strong power, reliable performance, efficiency and energy conservation
2. The design of streamlined form is more attractive and modern.
3. The cab fully adopting tempered glass is safer for the wider visual field.
4. Adopting the improved elastic connection method, a novel instrument panel is installed to reduce vibration, ensuring operation more convenient and comfortable.
5. The frame is optimally designed by the computer with high-quality steel, and the loader body is lengthened to make operation and driving more stable, safer and more reliable, and better quality.
Standard Configurations
Xinchai A498BT1 Euro 3 engine,4WD, 20.5-16 tires, joystick, standard bucket, Varta Battery, floating function, luxury cabin with heater, 220V engine preheat, warning light, adjustable steering wheel and seat, bucket can be level automatic, back sound, radio, fan, hand brake, extinguisher, window hammer, Free parts, tool box.Standard with 3 hydraulic lines
Optional
Imported engine with Euro V or EPA Tier 4 standards, Quick Hitch, double heater, air conditioning, electric floating, extra Hydraulic Line, electronic joystick, different attachments, etc.
Specifications
| Type | Data |
|---|---|
| Engine Model: | XINCHAI A498 BT1 E3 |
| Rated Power(kw): | 36.8 |
| Rated Speed(rpm): | 2650 |
| Rated load(kg): | 1600 |
| Rated Bucket Capacity(m3): | 0.5-0.9 |
| Overall Size LxWxH(mm): | 5100×1700×2680 |
| Wheel base (mm): | 2272 |
| Wheel thread(mm): | 1391 |
| Max.breakout force (KN): | 48 |
| Max.dump height(mm): | 2452 |
| Dump distance(mm): | 1146 |
| Total time(s): | 11 |
| Operating Weight(kg): | 4000 |
| Tyre: | 20.5/70-16 23.5-16 |
