Introduce

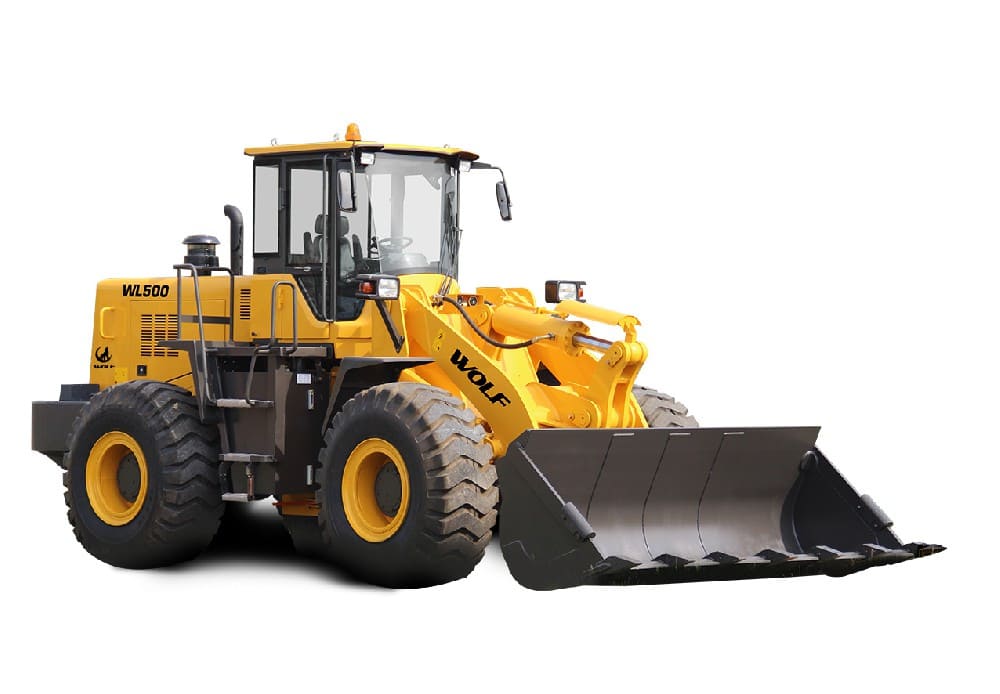

For construction, WL500 is one of the most popular loaders. More power, more strength, and high efficiency. It helps customers finish many projects. It can be widely used in farming, building, mining, and road construction.
Fully hydraulic pilot control, lightweight and flexible, tender moving effect is excellent. Efficient power shift transmission and torque converter, featured by high transmission efficiency energy saving effect
The drive axle with a big gear modulus and strong durability is suitable for heavy working conditions and designed for adverse conditions. Enhanced large space panoramic view cab, and German professional and technical spring damping quality sofa, safe and comfortable operation.
Specifications
| Type | Data |
|---|---|
| Engine Model: | WEICHAI WD10G220 E22 |
| Rated Power(kw): | 162 |
| Rated Speed(rpm): | 2200 |
| Rated load(kg): | 5000 |
| Rated Bucket Capacity(m3): | 3 |
| Overall Size LxWxH(mm): | 8085×2855×3450 |
| Wheel base (mm): | 3200 |
| Wheel thread(mm): | 2250 |
| Max.breakout force (KN): | 170 |
| Max.dump height(mm): | 3150 |
| Dump distance(mm): | 1250 |
| Total time(s): | 10.95 |
| Operating Weight(kg): | 17100 |
| Tyre: | 23.5-25 |
