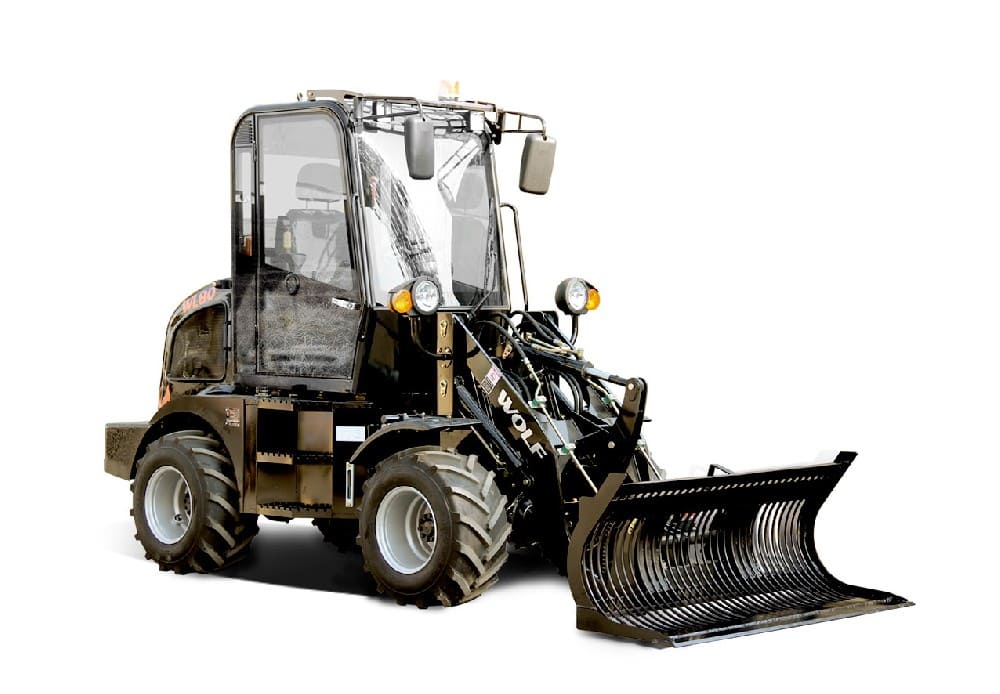

Since 2011, WL80 is always one of the best-selling models in the loader family.It both can be with roll bar or with enclosed cabin, total weight 2500kg. The wheel loader WL80 has several advantages, including:
1. High Efficiency The WL80 has a large bucket capacity and a fast cycle time, allowing it to handle large volumes of material quickly and efficiently.
2. Durability The WL80 is designed with a robust structure and high-quality components, making it durable and able to withstand tough working conditions.
3. Maneuverability The compact size of the WL80 makes it easy to maneuver in tight spaces, which is useful in construction sites and other areas with limited space.
4. Operator Comfort The WL80 has a spacious cab with ergonomic controls, air conditioning, and heating, ensuring operator comfort during long working hours.
Regarding the engine options, the standard engine is Changchai ZN390, which is a reliable and durable engine. The optional engines, Changchai Yunnei Euro V and Xinchai Euro III engine, offer more advanced emission control technologies, making them more environmentally friendly.
Specifications
| Type | Data |
|---|---|
| Engine Model: | CHANGCHAI 390 |
| Rated Power(kw): | 25 |
| Rated Speed(rpm): | 2400 |
| Rated load(kg): | 800 |
| Rated Bucket Capacity(m3): | 0.3-0.5 |
| Overall Size LxWxH(mm): | 4300×1600×2590 |
| Wheelbase (mm): | 1875 |
| Wheel thread(mm): | 1245 |
| Max. breakout force (KN): | 32 |
| Max.dump height(mm): | 2141 |
| Dump distance(mm): | 1152 |
| Total time(s): | 9.2 |
| Operating Weight(kg): | 2500 |
| Tyre: | 825-16/10-16.5/28×9-15.5/31×15.5-15/33×16.5-15 |
