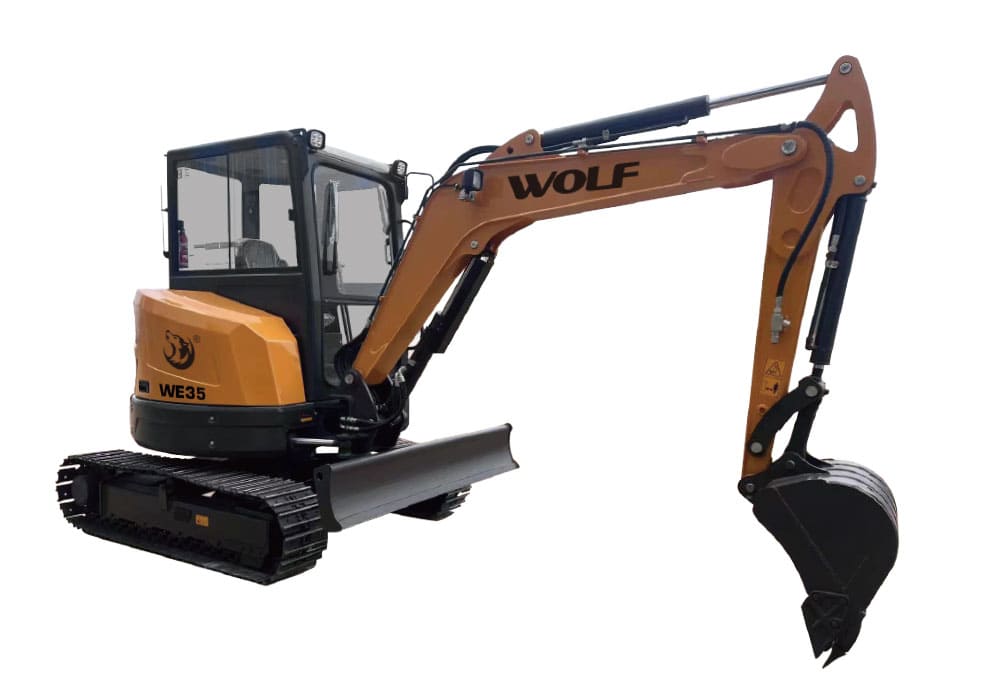

Specifications
| Engine | |
|---|---|
| Model | Kubota D1703 18.5KW/2200rpm |
| Rated power | 18.5kw |
| RPM | 2200 r/min |
| Displacement | 1.647 L |
| No. of cylinder | 3 |
| Main Performance | |
| Swing Speed (r/min) | 0-11 |
| Traveling Speed (km/H) | 4.4/2.4km/h |
| Grade ability (%) | 58% |
| Max. Bucket Digging Force (kN) | 30.4 |
| Arm Digging Force (kN) | 30.4 |
| Arm Digging Force (kN) | 18.2 |
| Ground Pressure (Kpa) | 32 |
| Hydraulic System | |
| Hydraulic system working pressure (Mpa) | 22.5 |
| Machine Weight (KG) | 3810 |
| Boom Length (mm) | 2535 |
| Arm Length (mm) | 1400 |
| Fuel Tank Capacity (L) | 42 |
| Hydraulic Tank Capacity (L) | 48.5 |
| Engine oil capacity (L) | 7 |
| Carrier roller(each side) | 1 |
| Supporting roller(each side) | 4 |
| Overall Dimensions | |
| Overall Length (mm) | 4915 |
| Overall Width (mm) | 1720 |
| Overall Height (mm) | 2525 |
| Mini Ground clearance | 295 |
| Track width (mm) | 300 |
| Axle base(Track length on ground)(mm) | 1670 |
| Track Gauge(mm) | 1420 |
| Swing radius at tail (mm) | 860 |
| Swing radius at front (mm) | 2538 |
| Height of blade (mm) | 350 |
| Operation parameters | |
| Bucket Capacity (m3) | 0.12 |
| Max. Digging Radius (mm) | 5480 |
| Max. Digging Depth (mm) | 3208 |
| Max. Digging Height (mm) | 4800 |
| Max. Dumping Height (mm) | 3406 |
| Max. vertical digging depth (mm) | 3208 |
