Introduce

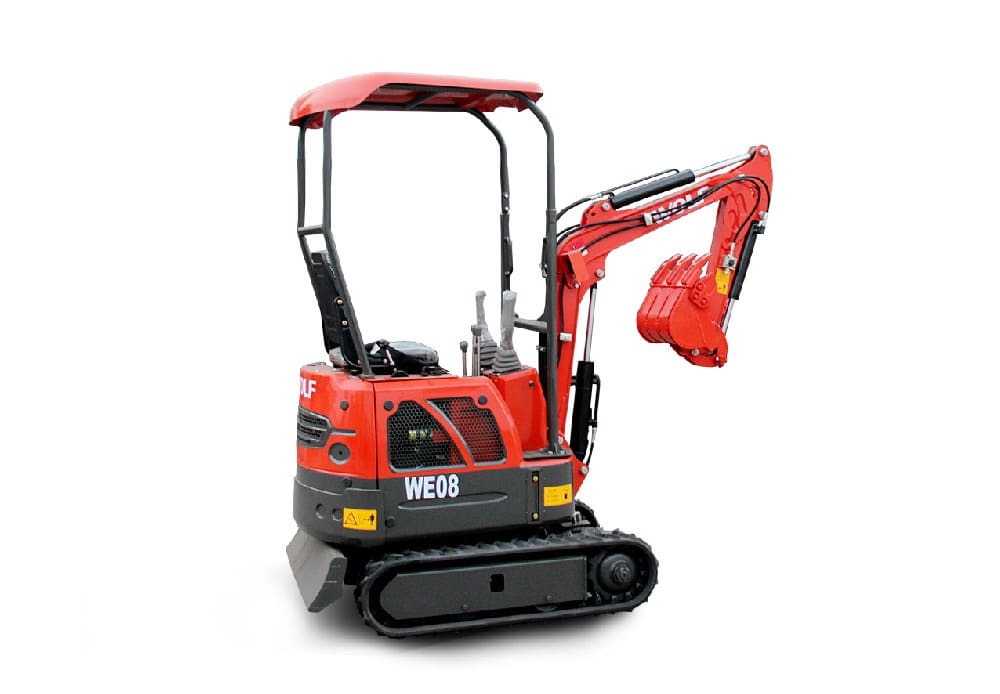

Designed to last, WOLF Excavators are manufactured with high international standards that are built to withstand harsh working conditions. Years of experience in components integration has given us the capability to architect our range of WOLF Excavators to comply with different operation requirements.
Upon careful selection of premium parts and components from all over the world, this powerful workhorse is engineered to maximize the capacity of every mechanism for optimal performance with high efficiency.
Specifications
| Operating Weight | 880kg |
| Digging bucket capacity | 0.025cbm |
| Digging bucket width | 400mm |
| Engine | KD192F-1 E5 |
| Rated power | 7kw |
| Displacement | 6.8ml/r |
| Bore stroke | single cylinder, fan cool |
| Main pump | JINXING |
| Pump flow | 16L/min |
| Hydraulic oil tank capacity | 16.5L |
| Engine oil tank capacity | 2.8(1.3)L |
| Diesel tank capacity | 7 L |
| Working pressure | 16Mpa |
| Valve | BEIFANG |
| Swing motor | KEERSEN |
| Traveling motor | USA EATON |
| Hydraulic oil tank | 16.5L |
| Diesel oil tank | 7L |
| Arm digging force | 5.0Kn |
| Bucket digging force | 9.5Kn |
| Electric pressure | 12V |
| Electrick power | 5W |
| MAIN DIMENSIONS | |
| Overall dimension( LxWxH) | 2770×896×1490 mm |
| Wheelbase | 910 mm |
| Total length of track on land | 1230mm |
| Platform ground clearance | 380 mm |
| Platform back turning radius | 784 mm |
| Chassis width | 896 mm |
| Track width | 180 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| OPERATING RANGE | |
| Max. Digging depth | 1650 mm |
| Max. Vertical digging depth | 1375 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2850 mm |
| Min. Rotation radius | 1330 mm |
| Max. Upgrade height of bulldozer blade | 345 mm |
| Max. Digging depth of bulldozer blade | 255 mm |
