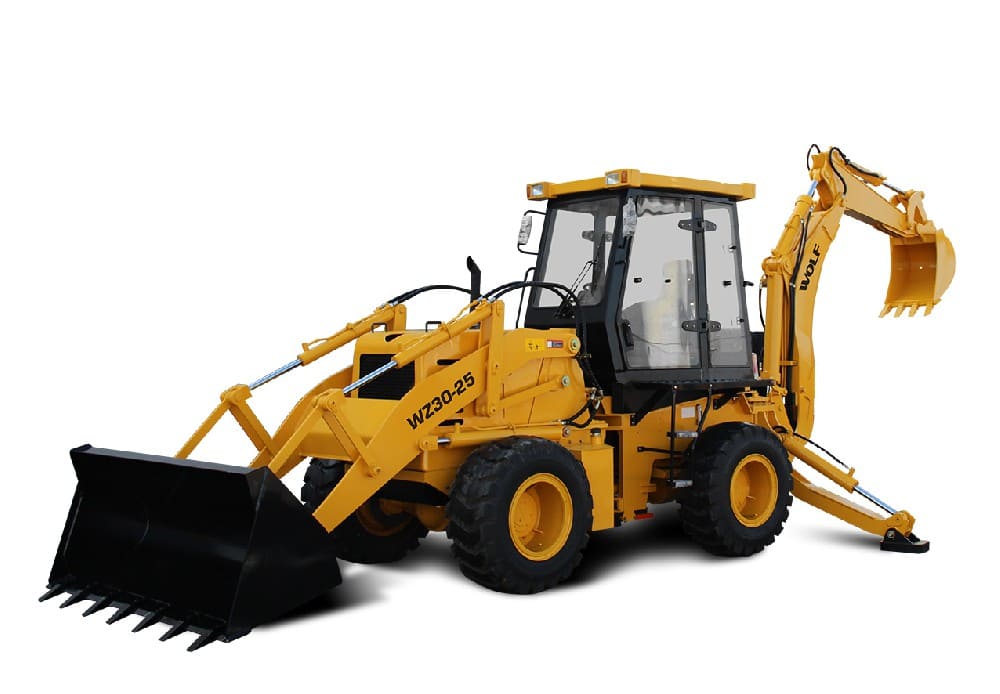

Introduce
Standard configuration:
Yuchai 75kw engine, hydraulic joystick control, Jinan Pump, SEM gearbox
loading bucket capacity 1m3,
loading bucket load: 2.5t
Digging bucket capacity: 0.25m3
Optional:
Weichai engine/Cummins engine, Quick Hitch, air conditioning, different attachments, etc.
Specifications
| Overall Dimension | |
|---|---|
| Length X Width X Height: | 6100×2268×3760(mm) |
| Wheel base: | 2250(mm) |
| Track: | 1640(mm) |
| Min. ground clearance: | 300(mm) |
| Refill Capacity | |
| Fuel tank | 70L |
| Transmission | 25L |
| Front axle | 9KG |
| Rear axle | 9KG |
| Hydraulic tank | 140L |
| Main Technical Specification | |
| Four-wheel drive | whole hydraulic system |
| Total operating weight | 7600kg |
| Maximum speed | 22Km/h |
| Maximum gradient capacity | 30° |
| Loading bucket capacity | 1m3 |
| Rated loading | 2500KG |
| Backhoe bucket capacity | 0.3m3 |
| Maximum digging depth | 4080(mm) |
| Bucket slewing angle | 190° |
| Bucket digging capacity | 46KN |
| Diesel engine | |
| Model | CUMMINS 4BTA3.9-C100 YTR4108G60-1 |
| Type | turbocharging four-stroke |
| Rated power | 74KW/100HP 55KW/74HP |
| Rated speed | 2200 r/min 2400 r/min |
| Cylinder –internal diameter | 4—110 4-108 |
| Maximum torque | 310NM 261.7N.M/1800R/MIN |
| Minimum fuel consumption | 245g/kw.h 216 g/kw.h |
| Displacement | 4.5L 4.4L |
| Steering system | |
| Type | articulated hydraulic steering |
| Steering angle | 36±1°left or right 36±1° |
| Wheel | |
| Tire size | 16/70-20 |
| Front wheel pressure | 0.22Mpa |
| Rear wheel pressure | 0.20Mpa |
| Service braking | air over hydraulic disc on 4 wheels |
| Parking brake | manual parking brake |
