Introduce

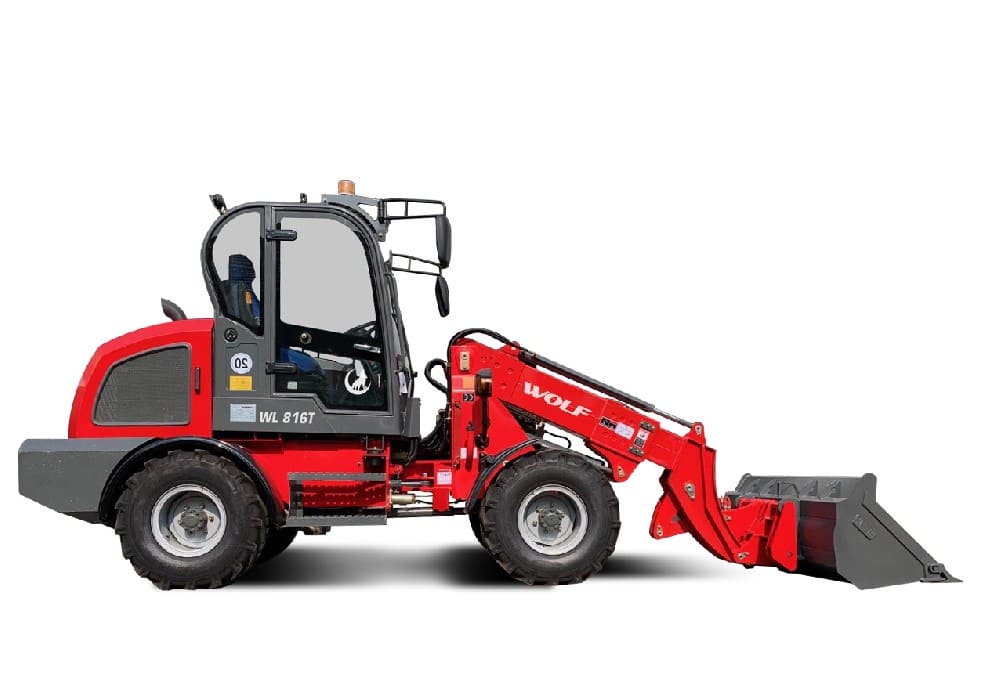

Wolf WL816T is one new model telescopic loader for Europe market, with new appearance and new structure, gives customers a new visual enjoyment; with new operating system, gives customers a new experience.
Standard configuration：
Xinchai498 Euro3 engine, 36.8kw
Electric joystick
20.5/70-16 tires
Enclosed cabin
Telescopic boom
Heater in cabin
220V engine preheating
4 ways hydraulic pipelines
Adjustable steering wheel and seat
Bucket
Optional configuration：
Full electric joystick
Diesel heater
Air conditioner
Quick hitch
Specifications
| Type | Data |
|---|---|
| Bucket Capacity (Cbm): | 0.8-0.9 |
| Rated Load (Kg): | 1600 |
| Max. Load (Kg): | 1700 |
| Overall Weight (Kg): | 3900 |
| Max.Dumping height (mm): | 3451 |
| Standard Engine: | XINCHAIA498BT 1 E3 |
| Rated Power (Kw): | 36.8 |
| Rated Speed (R/Min): | 2650 |
| Optional Engine: | XIN CHAI/YUN NEI/CHANG CHAI/KOHLER |
| Wheel Base (mm): | 2272.5 |
| Tread (mm): | 1491 |
| LX WXH (mm): | 5480×1820×2540 |
| Standard Tire: | 20.5/70-16 |
| Option Tire: | 33×16.5-15 |
| Max. Driving Speed (km/h): | 18-28 |
