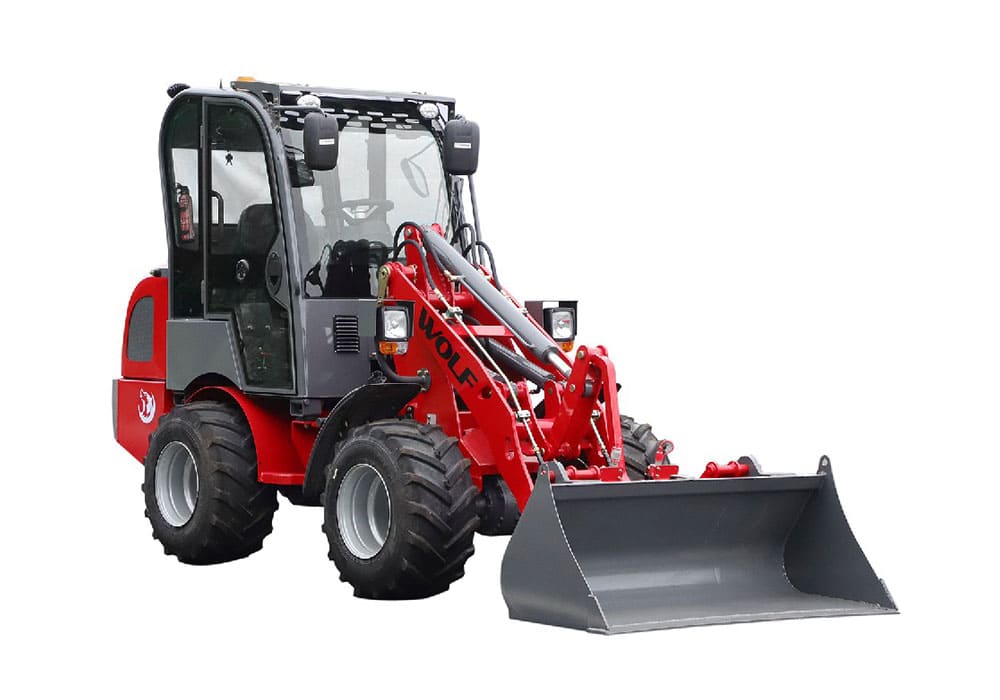

Mini780H is one newly published mini loader; with a hydrostatic transmission transmitting high power in a compact package. Easy to solve many works in the farm, garden and buildings. With the Kubota engine, meets Euro5 and ERA tier4 emission standards.Standard Configuration:Kubota V1505 engine: Meet Euro5/EPA emission standard, Noise levels during load and no-load operations are minimal; Standard built-in steel strut offset piston and increased rigidity of the crank and gear cases, reducing vibration.Electric joystick: More functions on one stick, easy to operate and handle.XT linkage: This keeps loads level automatically, making it ideal for lifting and carrying and truck-loading jobs.Rear trailer hitch: convenient to pull something, such as a small trailer; fast transportation.Optional:Diesel heater in the cabin: Warmer than standard heated Widely used in cold areas;4 ways hydraulic pipelines: To fit more attachments that need extra pipelines, such as V blade.
| Type | Data |
|---|---|
| Engine Model: | KUBOTA V1505 |
| Rated Power(kw): | 18.2 |
| Rated Speed(rpm): | 2300 |
| Rated load(kg): | 800 |
| Rated Bucket Capacity(m3): | 0.3-0.4 |
| Overall Size LxWxH(mm): | 4039×1446×2260 |
| Wheel base (mm): | 1595 |
| Wheel thread(mm): | 1101 |
| Max.breakout force (KN): | 50 |
| Max.dump height(mm): | 1980 |
| Dump distance(mm): | 614 |
| Total time(s): | 7.3 |
| Operating Weight(kg): | 2100 |
| Tyre: | 10-16.5/29×12.5-15/31×15.5-15 |
