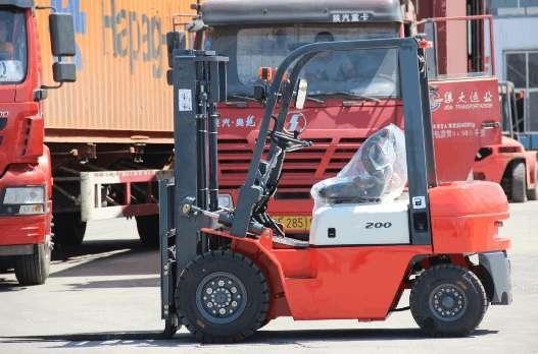

بابکت مدل WF200
Model | WF200 |
Standard Engine | Xinchai C490 II stage |
Engine power (kw) | 40 |
Loading capacity(kg) | 2000 |
Lifting height (mm) | 3000 |
Fork dimension(mm) | 1070x122x40 |
Mast tilting angle (deg) | 6/12 |
Dimension (mm) | 3600x1150x4220 (with fork, mast extended height) |
Front Tire | 7.00-12-12PR |
Rear Tire | 6.00-9-10PR |
Self weight (kg) | 3530 |
Transmission type | Mechanical |
