Specifications

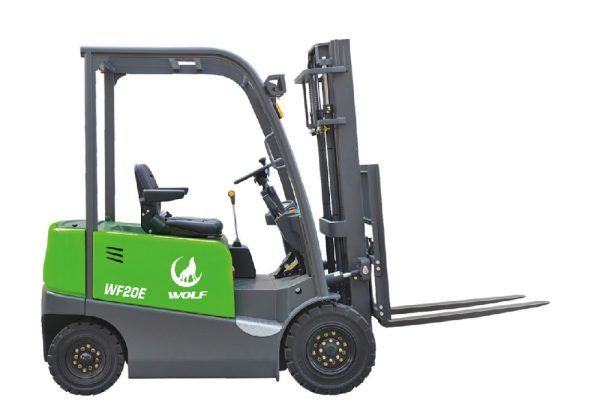

Travel System | WF20E(Semi-AC type) | WF20E(Full AC type) | WF25E(Semi-AC type) | WF25E(Full AC type) | |
---|---|---|---|---|---|
Power | – | electric | electric | electric | electric |
Operation type | – | seated | seated | seated | seated |
Capacity/rated load | Q(Kg) | 2000 | 2000 | 2500 | 2500 |
Load centre distance | c(mm) | 500 | 500 | 500 | 500 |
Lift height | h3(mm) | 3000-6000 | 3000-6000 | 3000-6000 | 3000-6000 |
Load distance, centre of drive axle to fork | x(mm) | 395 | 395 | 445 | 445 |
Wheelbase | y(mm) | 1480 | 1480 | 1480 | 1480 |
Service weiaht (with battery) | kg | 3315 | 3500 | 4050 | 4150 |
Axle loading, laden front/rear | kg | 4715/600 | 4815/685 | 5807/743 | 5857/793 |
Axle loading, unladen fron/rear | kg | 1545/1770 | 1635/1865 | 1829/2221 | 1859/2246 |
Tvre type | – | pneumalic/solid | pneumalic/solid | pneumalic/solid | pneumalic/solid |
Tyre size, front | mm | 6.50-10 | 6.50-10 | 23×9-10 | 23×9-10 |
Tyre size, rear | mm | 5.00-8 | 5.00-8 | 18×7-8 | 18×7-8 |
Wheels, number front rear (x=driven wheels) | – | 2x/2 | 2x/2 | 2x/2 | 2x/2 |
Tread,front | b10(mm) | 930 | 930 | 970 | 970 |
Tread,rear | h11(mm) | 920 | 920 | 970 | 970 |
Tilt of mast/fork carriage forward/backward | Grad | 5/10 | 5/10 | 5/10 | 5/10 |
Heiaht, mast lowered | h1(mm) | 2015-2610 | 2015-2610 | 2050 | 2050 |
Height, mast extended | h4(mm) | 4050-7050 | 4050-7050 | 4050-7050 | 4050-7050 |
Height of overheard guard (cabin) | h6(mm) | 2100 | 2100 | 2100 | 2100 |
Seat heiqht/stand height | h7(mm) | 1040 | 1040 | 1040 | 1040 |
Height of traction bolt | h10(mm) | 260 | 260 | 260 | 260 |
Overall length | I1(mm) | 3270 | 3270 | 3310 | 3310 |
Length to tace ot foilts | I2(mm) | 2200 | 2200 | 2240 | 2240 |
Overall width | b1(mm) | 1130 | 1130 | 1200 | 1200 |
Fork dimensions | s/e/I(mm) | 40/120/1070 | 40/120/1070 | 40/120/1070 | 40/120/1070 |
Fork carriage DIN 15173, class/type A,B | – | 2A | 2A | 2A | 2A |
Fork-carriage width | b3(mm) | 1088 | 1088 | 1160 | 1160 |
Ground clearance, laden, below mast | m1(mm) | 110 | 110 | 110 | 110 |
Ground clearance, centre of wheelbase | m2(mm) | 115 | 115 | 110 | 110 |
Aisle width for pallets 1000×1200 crossways | Ast(mm) | 3600 | 3600 | 3700 | 3700 |
Aisle width for pallets 800×1200 lengthways | Ast(mm) | 3800 | 3800 | 3900 | 3900 |
Turning radius | Wa(mm) | 2080 | 2080 | 2180 | 2180 |
Travel speed, laden/unladen | Km/h | 12/13 | 12/13 | 12/13 | 12/13 |
Lift speed, laden/unladen | mm/s | 0.24/0.36 | 0.28/0.32 | 0.24/0.36 | 0.26/0.3 |
Lowering speed, laden/unladen | mm/s | 0.36/0.42 | 0.36/0.42 | 0.36/0.42 | 0.36/0.42 |
Max. gradeability, laden/unladen | % | 15/20 | 15/20 | 13/14 | 13/14 |
Battery voltage, nominal capacity K5 | V/Ah | 48/450(500.560.630) | 48/500(560.630) | 48/500(560.630) | 48/560(630) |
Battery weight | Kg | 680 | 760 | 760/820/1055 | 820/1055 |
Driving control system | – | AC | AC | AC | AC |
